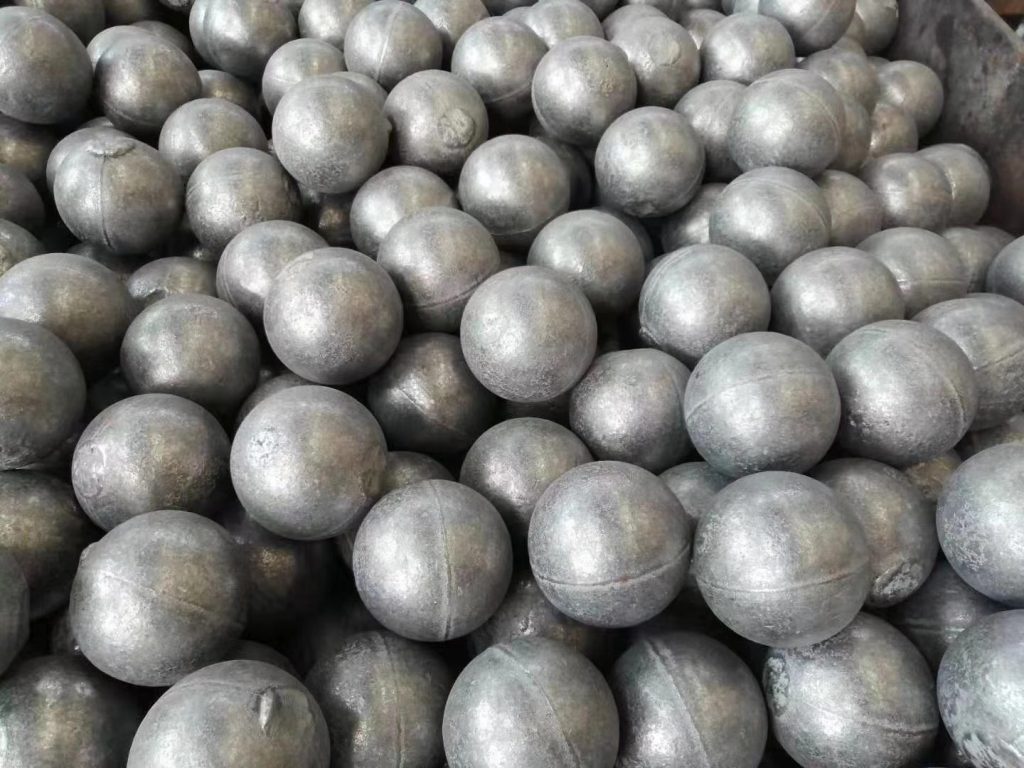

What is a Grinding Media Ball?

A grinding ball is a crucial component in many industrial processes, particularly in mills used for grinding, mixing, and crushing materials. These balls are typically made from various types of metals, ceramics, or composite materials and are used to reduce the size of materials by impact, grinding, or crushing. In simple terms, they are the “tools” that help in breaking down materials into finer particles during the milling process.

1. The Purpose of Grinding Media Balls

The primary purpose of grinding media balls is to assist in the process of milling, which involves the breaking down of larger particles into smaller ones. This is especially important in industries such as mining, cement production, chemical processing, and the production of materials like pigments, coatings, and even food products. The balls are placed inside grinding mills, which are machines designed to grind and crush materials, and as the mill rotates, the grinding media balls collide with the material being processed, causing it to break down into smaller particles.

2. Materials Used to Make Grinding Media Balls

Grinding media balls come in a variety of materials, and the choice of material depends on the type of milling process and the material being ground. Here are some of the most common materials used to make grinding media balls:

• Steel: Steel balls are the most commonly used type of grinding media. They are generally made of high-carbon steel, stainless steel, or chrome steel. Steel balls are durable, hard-wearing, and have good resistance to wear and tear, making them ideal for many grinding applications.
• Cast Iron: Cast iron balls are used in some applications, primarily where high wear resistance and cost-effectiveness are important. They are commonly used in mining and cement industries.
• Ceramics: Ceramic grinding media balls, such as those made from alumina, are often used in fine grinding processes. They are ideal for high-precision grinding, especially in industries like pharmaceuticals and cosmetics, where the integrity of the final product is important.

3. How Grinding Media Balls Work

Grinding media balls work by being placed inside a rotating mill. The mill contains the raw material, and the grinding media balls move inside the chamber. As the mill rotates, the balls tumble and collide with the material being ground. This collision helps break down larger pieces of material into smaller ones.

The efficiency of grinding media balls depends on factors like their size, hardness, and the type of material being ground. Smaller balls are generally better at grinding fine materials, while larger balls are better suited for coarser materials. The right combination of ball size and material ensures an efficient milling process, helping to achieve the desired particle size while minimizing energy consumption.

4. Types of Mills Using Grinding Media Balls

Several types of mills utilize grinding media balls, each designed for specific applications:

• Ball Mills: A ball mill is a cylindrical device that rotates around a horizontal axis, and it is the most common mill used with grinding media balls. In a ball mill, the grinding media balls tumble and grind the material inside the drum.
• Rod Mills: Similar to ball mills, rod mills use long rods instead of balls as grinding media. While ball mills are ideal for fine grinding, rod mills are typically used for coarser materials.
• Stirred Mills: Stirred mills are used for ultra-fine grinding. These mills have a vertical design, and grinding media balls are stirred or agitated, providing higher energy for fine grinding.

5. Factors to Consider When Choosing Grinding Media Balls

Choosing the right grinding media balls is critical for optimizing the milling process. Several factors influence this decision:

• Material Type: The material being processed will affect the type of media you need. For example, harder materials require harder grinding balls to achieve efficient grinding.
• Size and Shape: The size and shape of the grinding media balls can influence the grinding efficiency. Generally, smaller balls are better for fine grinding, while larger balls are suited for coarser grinding.
• Ball Hardness: The hardness of the balls determines how long they last during the grinding process. Harder balls last longer and are more durable, but they may also cause more wear on the mill itself.
• Cost: The material and quality of the grinding media balls will impact the cost. Steel balls are usually more cost-effective, but ceramic balls may be required for more specialized applications.

6. Applications of Grinding Media Balls

Grinding media balls are used in many industries, including:

• Mining: For grinding ores and minerals to extract valuable metals.
• Cement: For grinding limestone and other materials to produce cement.
• Chemical Processing: For grinding pigments, chemicals, and other products.
• Food Industry: For grinding spices, grains, and other food products.
• Pharmaceutical Industry: For grinding fine powders for medicines and cosmetics.

7. Conclusion

In summary, grinding media balls play a crucial role in many industrial processes, especially those involving milling and grinding. By selecting the right material, size, and hardness of grinding balls, manufacturers can optimize their grinding processes for efficiency, durability, and cost-effectiveness. Whether it’s for mining, cement production, or food processing, grinding media balls are an essential tool in breaking down materials into smaller particles, ultimately improving product quality and performance.
